Explosion-proof hands-free waterproof telephone
Product No.AFT-BG-02FMKL
Connection method: telephone line
Shell material: aluminum alloy shell
Surface treatment: high temperature anti-static spraying
Color: yellow
Size: 320×255×138mm
Protection level: IP68
Explosion-proof grade: Ex ib mb IIC T6 Gb
Speaker power: 30W
Adaptation temperature: -40-70℃
Relative humidity: ≤95%

Product details



product description
The explosion-proof hands-free sound-light-amplified waterproof telephone is compatible with many brands of program-controlled telephone switches on the market. It is specifically designed for subway tunnels, underground pipe corridor tunnels, highway tunnels, mines, power plants, steel plants, ports, ships, Special telephones developed in high humidity and high dust environments such as electrolysis workshops are suitable for long-term installation in various harsh environments. They are waterproof, moisture-proof, dust-proof, cold-proof, frost-resistant, high-temperature resistant, anti-oxidation, anti-corrosion, and anti-violence. Percussion and other characteristics.






Features
1. Aluminum alloy material, formed by more than 1,000 tons of die-casting machine, with high density, light weight, with the characteristics of cold resistance, anti-oxidation, anti-corrosion, anti-violent percussion, etc.;
2. The hook is made of zinc alloy stamping, after polishing, electroplating and other surface treatment processes, the back is encapsulated with imported reed pipes from abroad, which can be used with the built-in permanent magnet steel in the handle to switch between off-hook and on-hook. The hook has the characteristics of anti-cold, anti-freeze, anti-oxidation, anti-corrosion, and anti-salt spray;
3. The buttons are made of anti-aging silicone material, professionally designed for waterproof and dustproof, matched with gold-plated PCB boards, good hand feeling, good electrical performance, and service life ≥ 500,000 times;
4. The phone motherboard adopts an industrial-grade IP motherboard and reserves a wealth of signal stem nodes to facilitate linkage with surrounding external devices;
5. The phone shell adopts multiple waterproof design, all the incoming lines are sealed with professional anti-aging waterproof electronic glue, and the overall protection level of the phone reaches IP68;
6. The protection level of the loudspeaker and the sound and light warning light is IP65, and the explosion-proof level is Exd IIC T6. It has the characteristics of waterproof, explosion-proof, and moisture-proof, and can be used in the open air;
7. The whole telephone set has passed the national explosion-proof level test, and the explosion-proof level: Ex ib mb IIC T6 Gb





Phone function introduction (due to the high integration of the motherboard, please confirm the specific functions before leaving the factory)
1. Sound and light alarm function: when the phone is in the called state, the ringing sound and light warning light will be emitted, accompanied by red light rotating and flashing. It is suitable for places with loud noise and dark environment; when the phone handle is lifted After the machine answers, the sound and light warning lights will automatically cut off;
2. Amplification function: When the phone is in the called state, the ringing sound will be amplified and transmitted through the speaker. For example, after ringing 3-5 times, if no one answers, the phone will automatically answer and the calling voice will be heard. Amplify through loudspeaker to realize live broadcast;
3. One-key dialing: The phone supports storage of up to four groups of numbers (including the one-key speed dial button), and the number is permanently stored after it is set, and it will not be lost after power off. When in use, "lift the phone -> select the key to store the number" to dial out;
4. Automatic dialing: After pressing the hands-free button, the phone will automatically dial a set of pre-stored numbers;
5. Cyclic dialing: After pressing the hands-free button, the first group of numbers will be automatically dialed. If the line is busy or there is no answer, it will go to the second group. When the last group is still busy or there is no answer, it will automatically switch back. The first group, until someone answers or hangs up. Up to 5 groups of numbers can be stored;
6. Auto hang up: After the call is over, the phone will automatically detect the busy tone signal and inverse limit signal of the switch, and hang up after several confirmations;
7. Sound adjustment: The phone has two levels of volume adjustment. Bass file, this mode uses telephone line direct power supply, the volume is: 60~70dBA, the effective hands-free distance is: 0.1~0.2m; For the high range, this mode needs to be connected to 220V power supply or 6~12V DC power supply, and the volume is :≥90dBA, after testing, the effective hands-free distance is 0.8m~1m when the ambient noise is 80dBA; the factory default is the second gear, that is, it needs to be connected to the 220V power supply;
8. Linkage function: The phone reserves two open nodes with one open and one open. When the phone is off-hook/hangs up, the two dry nodes respectively provide two sets of pulse switch signals, one open and one off;
9. Support OEM OEM service, LOGO logo and packaging instructions can be customized according to requirements;
10. More functions can be customized according to requirements. Please communicate with the company's sales staff in advance to ensure that the phone can meet your needs.






Specific parameters

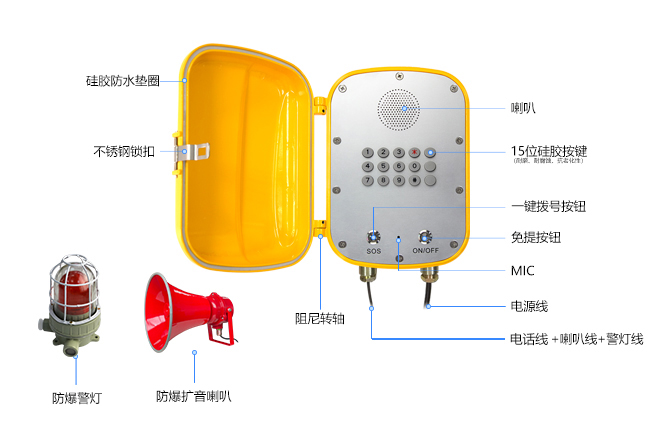

Schematic





Installation diagram




a. Use the matching M8 bolts to fix the phone on the installation backplane;
b. Drill 4 Φ10 holes (225.5*140mm) on the wall according to the hole positions shown on the installation back plate, and then insert the explosive screws into the holes;
c. Fix the phone and the installation back plate on the wall with matching nuts;
d. Connect the red and black wires to the speakers (speakers), and fix the speakers;
e. Connect the power cord to a 220V AC power source (if you need to connect to a 12V DC power source, please communicate first);
f. Finally, connect to the telephone line.





Product packaging specifications
Specification: 1 set/box
Gross weight: 8.0 KG
Net weight: 7.0KG
Packing: EPE, carton
